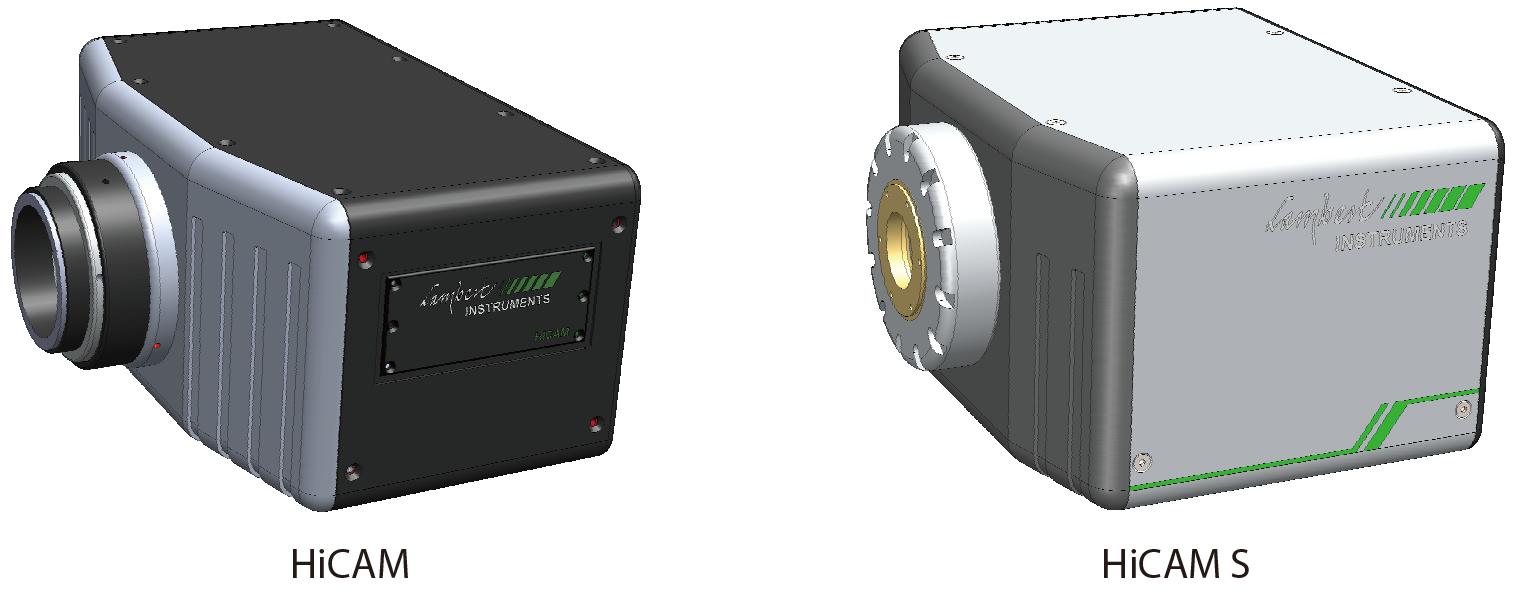

HiCAM 像增強型高速相機
HiCAM是一款針對弱光條件下的高速成像相機。其擁有1.3M芯片，可以在全畫幅情況下最快幀率達到500fps捕捉清晰圖像。如果減少采集畫幅可以獲得更高幀率。
關鍵性能：
- 高分辨像增強器：高分辨二代或三代像增強器，響應范圍可從紫外、可見到近紅波段。
- 超短門控：最低可到40ns（FWHM），且電子抖動極小
- 門控可高重復頻率工作：最高可達100KHz
- 緊湊型設計
HiCAM 像增強型高速相機應用：
- 燃燒實驗
- 等離子體物理
- 時間分辨熒光
- 顯微動力學實驗
- 激光誘導熒光（LIF）
- 粒子成像測速（PIV）
- 血流分析
- 微流控芯片技術
相機指標
|
Maximum resoluti1on (pixels) |
1280 x 1024 |
||
|
Resolution (pixels) |
1280 x 1024 |
800 x 600 |
512 x 512 |
|
Frame rate (fps) |
500 |
1200 |
2000 |
|
Internal memory options |
8 or 16 GB |
||
|
Pixel size |
14 x 14 μm |
||
|
Computer interface |
Gigabit ethernet |
||
|
SDK and LabView driver |
Optional |
||
|
ADC resolution |
8 or 10 bit |
||
門控屬性
|
Gain Control |
√ |
||
|
Gate control |
√ |
||
|
Shutter control |
√ |
Optional |
|
|
Gating pulse width range |
40 ns – 2.5 s |
< 3 ns – 10 s |
10 ns – 2.5 s |
|
Resulting min pulse width (increments) |
40 ns (10 ns) |
< 3 ns (10 ps) |
10 ns (10 ns) |
|
Pulse repetition rate |
100 kHz |
300 kHz |
300 kHz |
像增強模塊參數
|
First stage |
S20 |
S25 |
GaAs |
GaAsP |
|
|
Max. response wavelength (nm) |
270–450 |
500–850 |
450–550 |
550–750 |
|
|
Full spectral range (nm) |
200–800 |
200–900 |
350–900 |
300–750 |
|
|
Luminous sensitivity (μA/lm) |
Min. Typ. |
150 175 |
500 700 |
400 800 |
1000 1200 |
|
Gain |
Min. Typ. |
1500 ph/ph 2200 ph/ph |
2000 cd/m2/lx 5000 cd/m2/lx |
3000 lm/m2/lx 7500 lm/m2/lx |
3600 lm/m2/lx 11000 lm/m2/lx |
|
Peak quantum efficiency (%) |
Min. Typ. |
20 |
17 |
35 50 |
27 |
|
Resolution (lp/mm) |
Min. Typ. |
45 56 |
45 56 |
45 57 |
40 50 |
|
EBI (μlx) |
Typ. Max. |
0.1 0.25 |
0.1 0.25 |
0.03 0.3 |
0.03 0.3 |
|
Input window |
Quartz |
Quartz |
Borosilicate glass |
Borosilicate glass |
|
|
|
18 mm intensifier |
25 mm intensifier |
|||
|
Effective area on input |
12.78 x 12.68 mm |
17.75 x 17.61 mm |
|||
|
Input window thickness |
5.5 mm |
6.0 mm |
|||
|
Second stage |
Minimal |
Typical |
|||
|
Photon gain (ph/ph) |
6 |
11 |
|||
|
Typical total gain |
22000 |
50000 |
75000 |
100000 |
|
